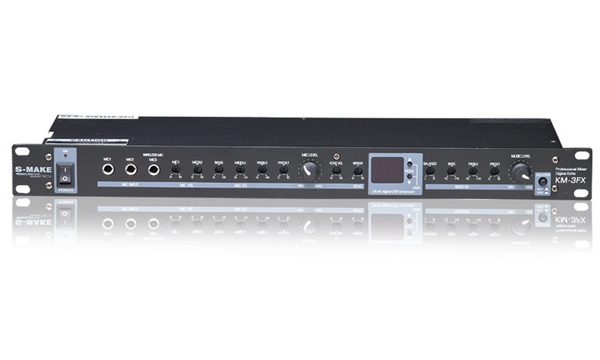

KM-3FX
*铝质面板,加厚钢质机架
*采用隐藏式调节,可靠的全功能锁定
*超低噪音的高质量性能
*特别的中间人声通道
*平衡XLR和1/4TRS输入和输出
*设6路麦克风输入插孔
*卡拉OK激励效果功能
*专业级24BIT数码混响回声电路
*人声和乐器声的分立式晶体管输入
*处理人声和乐器声的两段参数EQ
*外接有源重低音音箱接口
*次低音输出25-250HZ范围内持续可变的分频频率
*屏蔽式环形变压器有效防止噪音干扰
KM-3FX feature:
* Aluminum panels, thicker steel rack
* Use hidden adjustable, reliable, full-function lock
* Ultra-low noise, high-quality performance
* Special sound-channel intermediary

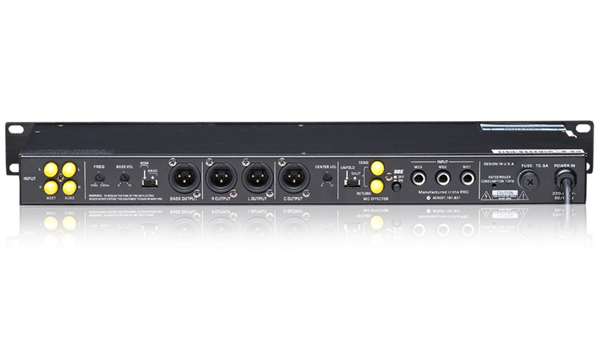

* Balanced XLR and 1/4TRS inputs and outputs
* 6-channel microphone input jack is located
* With Karaoke incentive effects function
* Professional 24BIT digital reverb echo circuit
* The sound of vocal and instrumental discrete transistor input
* Dealing with vocal and instrumental sound of two parameters of EQ
* External Active Subwoofer Speaker Interface
* Sub-bass output within the 25-250HZ continuous variable crossover frequency
* Shielded toroidal transformer to effectively prevent noise interference
FrequencyRespones频率范围(+/-0.5dB) |
20Hz-20KHz |
InputSensitivity 输入灵敏度 |
250mV |
InputImpedance输入阻抗 |
47KΩ/信号 2K/话筒 |
Noise (unweighted) 信噪比 |
>95dB |
InputMIC 麦克风输入 |
10mV |
PowerSupply 供电电源 |
220V/AC/50Hz |
PowerConsumption 耗电量 |
10VA |
Dimensions外型尺寸(W×H×D) |
482×43×130 mm |
Weight重量 |
2.6kg |
