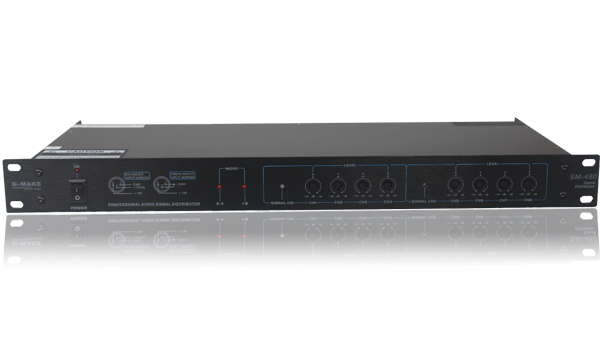

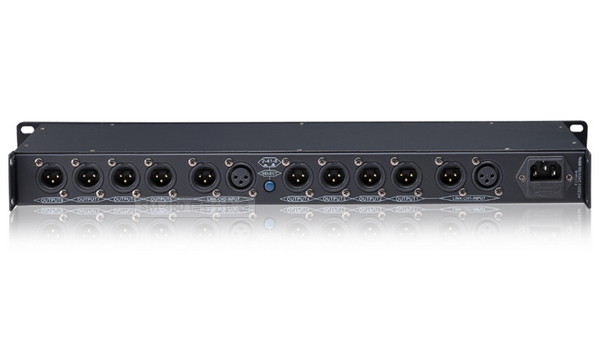

SM-480 信号分配器

<
>

  • 基本信息
  • 详细规格

SM-480 是一台强有力的系统强化装置.它拥有独立调整输出电平的1进8出/2进4出,全平衡输入,输出功能,能配合您的系统设备进行不同要求的连接,从而保证输出信号的电平与输入信号一致,并能减少和抑制电网中的各种干扰和浪涌冲击,以保证系统设备在信号处理上稳定性和可靠性.


SM-480 is a powerful equipment to enhance the system. It has the independent adjustment of the output level in the mode of 1 into 8 / 2 into 4, and full balanced input、output functions, which can coordinate equipment of your system to connect in the different requirement, so ensure that the output signal level is consistent to the input signal level, to reduce and inhibit the various interference and surge impact in order to ensure stability and reliability of the signal processing.

FrequencyRespones   频率范围(+/-0.5dB)

20Hz-20KHz

InputImpedance  输入阻抗

40KΩ/平衡 20KΩ/不平衡

OutputImpedance  输出阻抗

200Ω/平衡 100Ω/不平衡

Noise(unweighted) 信噪比

>100dB

PowerSupply供电电源

220V/AC/50Hz

PowerConsumption 耗电量

10VA

Dimensions 外型尺寸(W×H×D)

482×43×155mm

Weight 重量

2.2kg
