主要特点:
10英寸大功率低音单元,采用2英寸铜线 音圈 线性悬挂系统和带孔轭铁设计的低音单 元能有效消除失真和减少功率压缩 2个3英寸纸锥中音和2个3英寸纸锥高音搭 配能更好的重放人声 精心设计的分频器准确分频和优化三段 频率响应 箱体采用坚固的中密度纤维板,表面采 用乙烯基贴层处理 专业设计的内置保护电路能有效保护高音 单元,避免功率过载而中断工作。
应用:

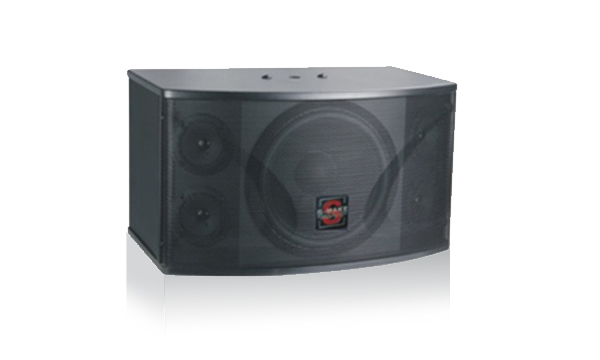

Ki110是一款专为KTV包厢设计的3分频全频音箱,它使用了1个10英寸低音单元、2个3 英寸纸锥中音和2个3英寸纸锥高音。 采用非压缩长纤维纸浆纸盆和泡沫折环的 10英寸低音单元,具有坚韧、可靠性强的 特点,能承受磁路产生的巨大加速力。2个 3英寸纸锥中音搭配2个3英寸纸锥高音能改 善中高音表现并提供KTV扩声需要的更好 的音质。 整个音箱系统可以承受150W连续功率。箱 体采用坚固的中密度纤维板,表面采用乙 烯基贴层处理。镀镍处理的接线柱可增强 连接可靠性。2个高强度M10吊挂点,使得悬挂牢固度得以保证。 精心设计的整体式的栅格不仅能有效保护零部件而且优雅的外观设计独具匠心。
Main features:
10 inches of high-power woofer voice coil using 2 inches of copper wire linear suspension and perforated yoke designed woofer can effectively eliminate distortion and reduce power compression two 3- inch paper cone midrange and two three inches paper cone tweeter with better reproduction of the human voice carefully designed and optimized divider divider accurate three -band frequency response box made ​​of sturdy MDF , the surface layer of vinyl stickers deal professionally designed built-in protection circuit can effectively protect the treble unit , to avoid overloading the power is interrupted work .
Application:
Ki110 is a KTV rooms designed specifically for 3-way full-range speaker , it uses a 10 -inch woofer , two 3- inch paper cone midrange and two 3- inch paper cone tweeter . Non- compressed 10 inches long fiber pulp cone woofer and foam surround , with a tough, strong reliability characteristics , can withstand the enormous acceleration forces generated by the magnetic circuit . Paper cone 2 3 in. 3 in. Alto with two paper cone tweeter treble to improve performance and provide better sound quality needed KTV . The entire speaker system can withstand 150W continuous power . Box made ​​of sturdy MDF , the surface layer of vinyl stickers processing . Nickel plated binding posts can enhance the connection reliability. Two high-strength M10 rigging points , making the suspension firmness can be guaranteed. Well-designed grid integral parts not only can effectively protect the distinctive design and elegant appearance .
吊挂点: 2 x M10
System:
System Type: 10 inches, 3-way, bass-reflex type
Frequency range (-10 dB): 48 Hz - 18 KHz
Frequency response (± 3 dB): 65 Hz - 16 KHz
Sensitivity (1w/1m): 89 dB
Rated impedance: 8 Ohms
Maximum SPL output: 111 dB (peak: 117 dB) @ 1 m
Rated input power 2: (Continuous / music signal / peak) 150 W/300 W/600 W
Recommended amplifier power range: 180 W - 250 W @ 8 Ohms
Coverage angle: 150°x 120° (H x V)
Overall:
Dimensions (H x W x D): 290 mm x 506 mm x 320 mm
NW: 12.4 Kg (27.3 lbs.)
Woofer: 1 10-inch woofer
Midrange: 2 a 3 inch paper cone midrange unit
Tweeter: 2 a 3 inch paper cone tweeter
Input Connector: Terminal
Cabinet structure: 12 mm thick medium-density fiberboard, the surface layer processing vinyl stickers
Hanging points: 2 x M10
