当前位置:首页>产品中心>专业音箱>SRX712M 专业返听音箱

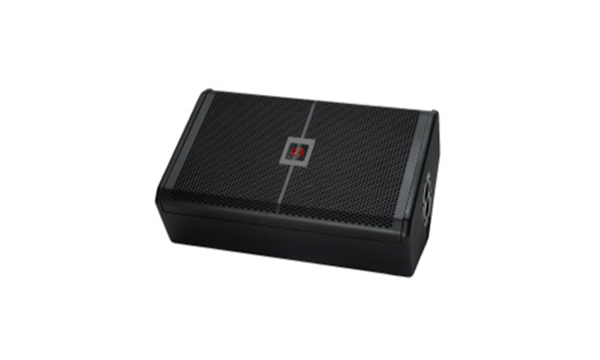

SRX712M 专业返听音箱

<
>

  • 基本信息
  • 详细规格

1、SRX712是12"二分频全频音箱,内置经电脑检测的无源分频器。
2、使用了意大利CLIO电脑测试设备进行细致的音质测定。
3、高音采用1.75"乙稀振膜,80OH/50OV CD号角,使高频更加通透、明亮、更具穿透力,配合优化效能低音单元,具有远程投射力度和弹性。
4、特殊梯形箱体设计,坚固的箱体组合结构,方便安装和阵列,箱体喷涂黑色聚脂防水漆,易于防护,不仅防水、防潮、耐晒、且易于日常防护。
5、此音箱适用于体育馆、剧院、DISCO、夜总会等娱乐场所 要求更宽的音场效果时,可用S18、S218等超低频箱组合在一起使用,会有更好的音场效果。

1.SRX712 is a 12 "two-way full-range speaker, built-in passive crossover detection by the computer.
2.Using the Italian CLIO computer careful quality test equipment measured.
3.Treble the use of 1.75 "vinyl diaphragm, 80OH/50OV CD horn, so that high frequency is more transparent, bright, more penetrating, with optimal efficiency woofer with a long-range projection of strength and flexibility.
4.Special trapezoidal cabinet design, solid box structure, and easy installation and an array of cabinet spray paint black polyester waterproof, easy-to-protection, not only waterproof, moisture, light and easy-to-day protection.
5.The speaker for stadiums, theaters, DISCO, nightclubs and other entertainment requirements of a wider sound field effects when used S18, S218, LS1200 and other boxes together to use ultra-low frequency, there will be a better sound field effect.

技术指标 Technical Specifications
功率Rated Power Aes 300W
峰值功率Peak Power 600W
阻抗Nominal Impedance 8Ω
频率响应Frequency Response(+/-3db) 65HZ—18KHZ
灵敏度Sensitivity(2.83V/1m) 97db
最大控制声压Maximum Spl Continuous 120db
峰值声压Maximum Spl Peak 126db
低音Lf Drive 1×12”(310mm)/3” voice Coil
高音Hf Drive 1”exit Compression Driver 1.75” voice Coil
箱体尺寸Dimensions (w×h×d) 349×540×260
重量Weight (Kg) 21Kg

Technical Specifications
Rated Power Aes 300W
Peak Power 600W
Nominal Impedance 8Ω
Frequency Response(+/-3db) 65HZ—18KHZ
Sensitivity(2.83V/1m) 97db
Maximum Spl Continuous 120db
Maximum Spl Peak 126db
Lf Drive 1×12”(310mm)/3” voice Coil
Hf Drive 1”exit Compression Driver 1.75” voice Coil
Dimensions (w×h×d) 349×540×260
Weight (Kg) 21Kg
